ALUPANELIX / AP–02SCREENS & SOLAR CONTROL

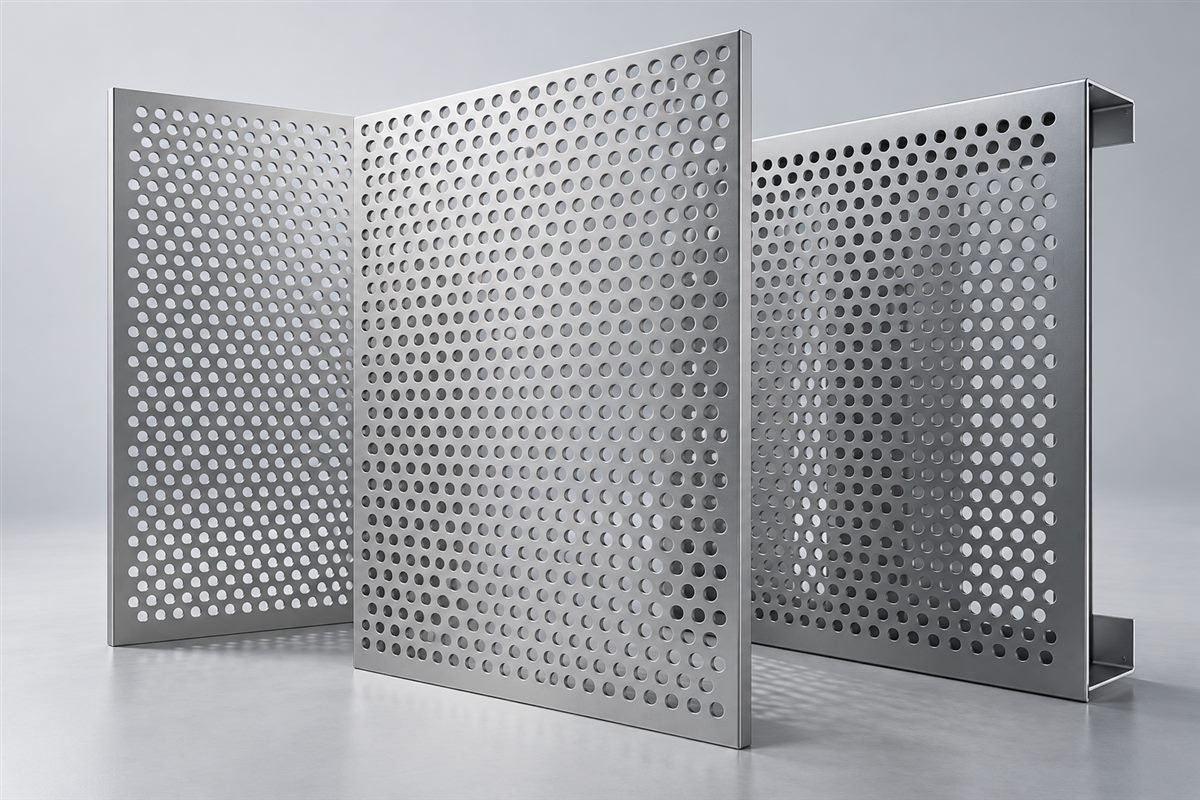

Perforated Aluminum Panels
CNC-punched AA3003-H24 aluminum panels for architectural shading, ventilation and decorative screens. Control the hole pattern, open area and finish to suit your design.
1.5–3.0 mmPanel thickness
5–60%Open area
2,000 × 6,000Maximum size · mm
Perforation ranges supplied by the manufacturer.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW
Light, air and
pattern. In balance.
Perforation turns a solid aluminum sheet into a patterned surface. Round, square, oblong and custom openings can be arranged in regular, gradient or graphic layouts. Large formats require a coordinated reinforcement and fixing design.
01
Your pattern, accurately repeated
From uniform circular perforations to gradients and project-specific graphic layouts.
02
Designed around open area
Coordinate visual transparency with ventilation, shading and support requirements.
03
A complete panel detail
Unperforated borders, fixing zones and stiffeners are planned with the pattern.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Base material | AA3003-H24 aluminum alloy |
| Nominal thickness | 1.5 / 2.0 / 2.5 / 3.0 mm |
| Maximum processing size | 2,000 × 6,000 mm; reinforcement, tooling and finish subject to layout review |
| Hole diameter range | Ø1.0–Ø300 mm; minimum hole size depends on sheet thickness and tooling |
| Hole patterns | Round, square, oblong, flower, irregular shapes and custom artwork / logos |
| Open area | 5–60%; selected for shading, airflow, visual openness and acoustic assembly needs |
| Pitch / arrangement | Straight, staggered, gradient or irregular; hole pitch and ligament width to approved artwork |
| Edge treatment | Unperforated borders, folded returns and fixing zones to shop drawings |
| Reinforcement | Internal stiffeners configured for panel size, flatness and design wind load |
| Coating options | PVDF / powder coating / anodizing; process compatibility confirmed with the chosen alloy |
| Surface effects | RAL colors, metallic colors, woodgrain and stone-effect finishes |
| Coating thickness | Project-specific; typical PVDF target 25–35 μm or powder target 60–80 μm |
| Acoustic use | Sound absorption requires an engineered backing / insulation assembly; perforation alone has no stated acoustic rating |
| Inspection | Hole geometry, pitch, open area, dimensions, burrs, finish and reinforcement |
| Export packaging | Standard aluminum-panel export packaging; protective layers, edge protection and marked packing list |
| Warranty / delivery | Coating warranty, quantity, production schedule and shipping terms agreed in the quotation |
Manufacturer-provided perforation ranges. Coating-film targets are typical references. Final dimensions, hole combinations, reinforcement and performance requirements are subject to approved drawings and quotation.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.
Graphite
Solid-color coating reference
Champagne
Metallic color reference
Woodgrain
Decorative finish reference
Finish compatibility depends on the alloy, fabrication route and exposure. Anodizing, PVDF and decorative treatments must be confirmed for the selected product.
04 / WHERE IT WORKS
Designed for real architectural needs.
01
Facade solar shading
02
Balcony & landscape screens
03
Ventilated parking facades
04
Acoustic ceiling assemblies
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
How is open area selected?
The pattern is reviewed against the required airflow, shading and appearance. Acoustic applications also need a specified backing assembly. Send the required open area or functional brief with your drawing.
Can the pattern include a logo or a gradient?
Yes. Provide vector artwork or a dimensioned CAD pattern. Hole size, pitch, remaining metal and stiffener locations are reviewed before sample approval.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
