Natural silver
Anodized / metallic references
ALUPANELIX / AF–01METALLIC SURFACES & PANELS

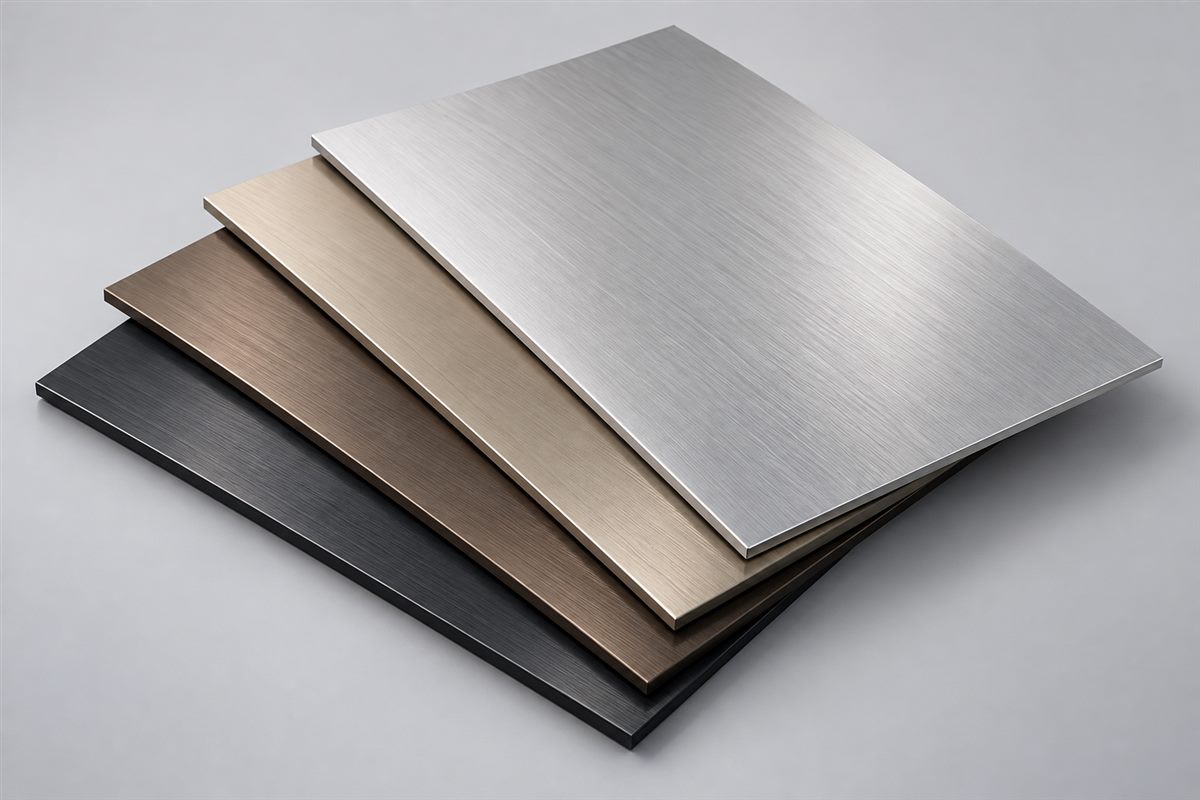

Anodized Aluminum Sheets
Anodized aluminum sheets and fabricated panels with a distinctive metallic surface. Define the alloy, color, grain direction and exposure conditions from the outset.
1.0–3.0 mmReference sheet gauge
10–25 μmAnodic film targets
Sample approvedColor & grain direction
Typical selection references; final specifications to approved drawing.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW
Natural metal.
A refined surface.
Anodizing creates an oxide layer on the aluminum surface. The base alloy, surface preparation and batch affect the final metallic appearance, so an approved physical sample and controlled grain direction are essential for architectural work.
01
Material character remains
A metallic surface with alloy and pretreatment selected to suit the intended appearance.
02
Samples set the standard
Approve the actual color, brushing direction and appearance variation.
03
A coordinated finish route
Fabrication sequence and exposed cut edges reviewed before anodizing.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Product form | Flat sheet or fabricated panel; anodizing before or after fabrication to be agreed |
| Common alloy options | 5005 for architectural anodized appearance; 5052 / 3003 suitability to be reviewed against the finish |
| Nominal thickness | 1.0 / 1.5 / 2.0 / 2.5 / 3.0 mm — reference selection |
| Reference sheet formats | 1,220 × 2,440 / 1,500 × 3,000 mm; finished size subject to stock, tank and fabrication review |
| Anodic film targets | 10 / 15 / 20 / 25 μm — typical selection targets; exposure and test requirements to be agreed |
| Surface preparation | Satin, brushed or other agreed pretreatment; sample review required |
| Color references | Natural silver, champagne, bronze and dark tones; actual availability subject to approved sample |
| Color consistency | Alloy batch, finish batch and permitted appearance variation agreed before production |
| Grain direction | Marked direction to match the elevation and installation sequence |
| Fabrication | Cutting, folding, holes and weld locations reviewed with the finish route |
| Sealing / appearance | Sealing method, visible surfaces, rack marks and cut-edge treatment agreed in the specification |
| Outdoor suitability | Selected alloy, film target, sealing and environmental exposure reviewed as a system |
| Inspection | Base thickness, dimensions, film thickness, finish appearance and sample comparison |
| Protection / packing | Surface film or interleaving and edge protection; removal and storage instructions agreed |
| Warranty | Written project-specific finish terms; exposure, cleaning and appearance acceptance defined |
| Order / lead time | Sample approval, order quantity, packing format and production schedule confirmed in quotation |
Typical specification references for initial selection. These values are not confirmed production limits. Final alloy, dimensions, tolerances, coating system and warranty are subject to drawing review, sample approval and written quotation.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.
Graphite
Solid-color coating reference
Champagne
Metallic color reference
Woodgrain
Decorative finish reference
Finish compatibility depends on the alloy, fabrication route and exposure. Woodgrain is a separate decorative finish alternative, not an anodized effect.
04 / WHERE IT WORKS
Designed for real architectural needs.
01
Architectural wall cladding
02
Interior metal finishes
03
Ceiling & soffit panels
04
Decorative metal details
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
Will every sheet be an exact color match?
Anodized appearance can vary with alloy, pretreatment, grain and batch. Agree on an approved sample range, consistent grain direction and batch planning before production.
Which anodic film thickness do I need?
The 10–25 μm targets are selection references. The final target, sealing process and acceptance criteria must match the project environment and specification.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
LET’S BUILD THE DETAILS
Your drawing.
Our next conversation.
Tell us what you are specifying. We will review the product, finish and supply requirements with you.
