ALUPANELIX / AC–02FORMED CEILING SYSTEMS

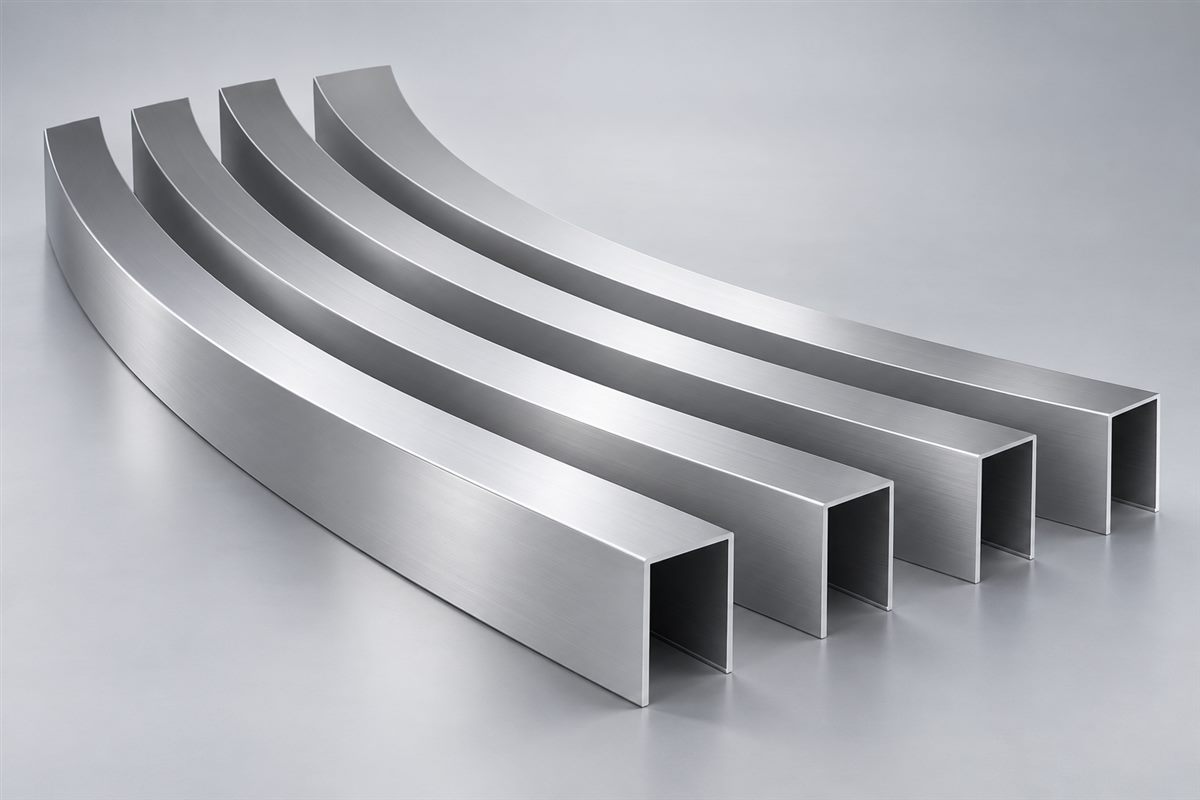

Curved Aluminum Baffles
Custom curved aluminum baffles for flowing ceilings and architectural features. Define the radius, profile and layout; we review the geometry with your drawings.
1.0–2.0 mmReference sheet gauge
30–100 mmReference face width
To drawingRadius & curve path
Typical selection references; final specifications to approved drawing.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW
A softer line.
A stronger identity.
Curved baffles follow an architectural path rather than a straight ceiling grid. Curve orientation, profile depth, spring-back, splice positions and suspension points are coordinated together to achieve a consistent finished rhythm.
01
Geometry comes first
A defined radius or CAD curve allows the section and joints to be reviewed together.
02
A coordinated visual flow
Parallel arcs, waves and radial layouts developed around the ceiling plan.
03
Samples before production
Confirm the curve, finish and connection detail with an approved sample.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Construction | Formed curved aluminum baffle; single-plane curves or project-specific geometry |
| Common material | AA1100 / AA3003 sheet; temper and forming suitability reviewed per radius |
| Nominal sheet thickness | 1.0 / 1.2 / 1.5 / 2.0 mm — selection reference |
| Reference face width | 30–100 mm; selected with depth, radius and forming requirements |
| Reference profile depth | 50–200 mm; project-specific section drawing required |
| Curve radius / orientation | To CAD path or 3D model; minimum radius established by forming trial and profile review |
| Segment length | Drawing-based; joints planned for forming, transport and installation |
| Curve consistency | Radius template / agreed inspection jig and approved sample control acceptance |
| Spacing / layout | Parallel, wave or radial arrangements to the reflected ceiling plan |
| Suspension system | Carrier, hangers, splice plates and end details coordinated with the curve path |
| Surface treatment | Powder, PVDF, woodgrain or stone-effect coating, subject to forming and finish review |
| Film thickness | Typical powder target 60–80 μm; PVDF system specified separately |
| Installation identification | Curve direction, sequence and module marks defined in the approved packing schedule |
| Inspection | Section geometry, radius, twist, segment length, joints, fit and surface finish |
| Export packing | Shape-supporting protective packing to reduce movement and distortion in transit |
| Order / warranty | Sample, quantity, lead time, installation scope and written warranty confirmed per quotation |
Typical specification references for initial selection. These values are not confirmed production limits. Final alloy, dimensions, tolerances, coating system and warranty are subject to drawing review, sample approval and written quotation.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.
Graphite
Solid-color coating reference
Champagne
Metallic color reference
Woodgrain
Decorative finish reference
Finish compatibility depends on the alloy, fabrication route and exposure. Anodizing, PVDF and decorative treatments must be confirmed for the selected product.
04 / WHERE IT WORKS
Designed for real architectural needs.
01
Hotel reception ceilings
02
Atrium feature ceilings
03
Cultural & public interiors
04
Retail feature zones
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
What is the minimum bend radius?
There is no single minimum radius for every baffle. It depends on alloy, temper, thickness, section geometry and bend direction; the value must be reviewed against your drawing.
How are long curves shipped?
Long runs can be divided into identified segments with coordinated splice details. Segment dimensions, supporting packing and installation order are agreed before production.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
