Natural silver
Anodized / metallic references
ALUPANELIX / AS–01DECORATIVE GRILLES & SCREENS

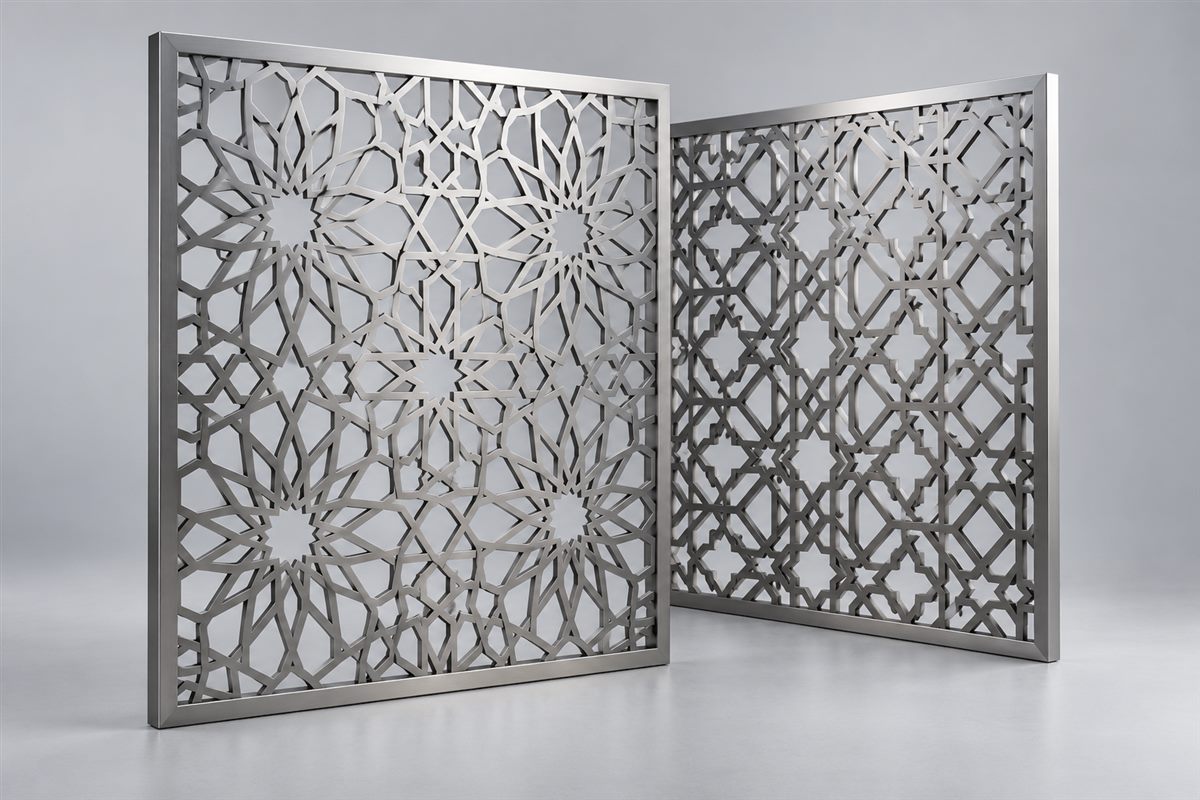

Decorative Aluminum Screens
Laser-cut aluminum screens and decorative grilles for facades, windows and interior partitions. Custom patterns, frames and finishes, coordinated with your architecture.
2.0–5.0 mmReference cut-sheet gauge
Custom CADPattern & frame
Powder / PVDFFinish options
Typical selection references; final specifications to approved drawing.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW
Pattern with
architectural purpose.
Aluminum decorative screens combine a custom cut pattern with a supporting frame or folded panel detail. Design openness, remaining metal, fixing zones and coating coverage are reviewed together for the intended application.
01
A pattern that belongs
Adapt the geometry to the building, from fine lattices to bold graphic screens.
02
Frame and panel together
Resolve clear borders, fixing zones and structural support before cutting.
03
Interior or exterior finish
Select a coating system for the environment and approve the finished sample.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Construction | Laser-cut aluminum sheet with folded edges or an independent frame; profile-built grilles to drawing |
| Common sheet alloy | AA3003 / AA5052 as initial selection options; alloy and temper to approved specification |
| Cut-sheet thickness | 2.0 / 2.5 / 3.0 / 4.0 / 5.0 mm — reference options |
| Reference sheet formats | 1,220 × 2,440 / 1,500 × 3,000 mm; finished modules and support layout reviewed per drawing |
| Pattern options | Geometric lattice, floral designs, abstract patterns and customer CAD artwork |
| Open area / minimum ligament | Defined from pattern, panel size and design loads; no universal minimum assumed |
| Frame / profile | Welded, mechanical or folded construction; section sizes and wall thickness to design |
| Panel edges | Deburred cut edges; cut-outs, fixing zones and frame connections to drawing |
| Surface treatment | Powder coating, PVDF, woodgrain or stone-effect treatment |
| Typical film thickness | Powder 60–80 μm or two-coat PVDF 25–35 μm as reference targets |
| Color / texture | RAL references, metallic finishes or sample matching |
| Fixing / reinforcement | Project-specific frame, bracket and anchor design; wind loads and supports coordinated |
| Use classification | Decorative screen; any balustrade, fall-protection or security function requires separate engineered approval |
| Inspection | Pattern geometry, edge quality, frame square, fixing fit, dimensions and coating |
| Packing | Individual surface protection and edge / frame support to an agreed export packing plan |
| Order / delivery | Pattern sample, quantity, tooling, lead time and warranty agreed in the quotation |
Typical specification references for initial selection. These values are not confirmed production limits. Final alloy, dimensions, tolerances, coating system and warranty are subject to drawing review, sample approval and written quotation.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.
Graphite
Solid-color coating reference
Champagne
Metallic color reference
Woodgrain
Decorative finish reference
Finish compatibility depends on the alloy, fabrication route and exposure. Anodizing, PVDF and decorative treatments must be confirmed for the selected product.
04 / WHERE IT WORKS
Designed for real architectural needs.
01
Decorative window grilles
02
Facade screening
03
Landscape partitions
04
Interior feature dividers
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
Can you work from my pattern?
Yes. Send a dimensioned DXF / DWG or vector artwork, panel sizes and application. Remaining metal, fixing zones and frame requirements are reviewed before approval.
Can the screen also serve as a balcony guard?
A decorative screen has no automatic guardrail rating. Where fall protection is required, the complete panel, support and anchors need separate structural design and project approval.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
LET’S BUILD THE DETAILS
Your drawing.
Our next conversation.
Tell us what you are specifying. We will review the product, finish and supply requirements with you.
