Natural silver
Anodized / metallic references
ALUPANELIX / AP–01FACADE & CLADDING

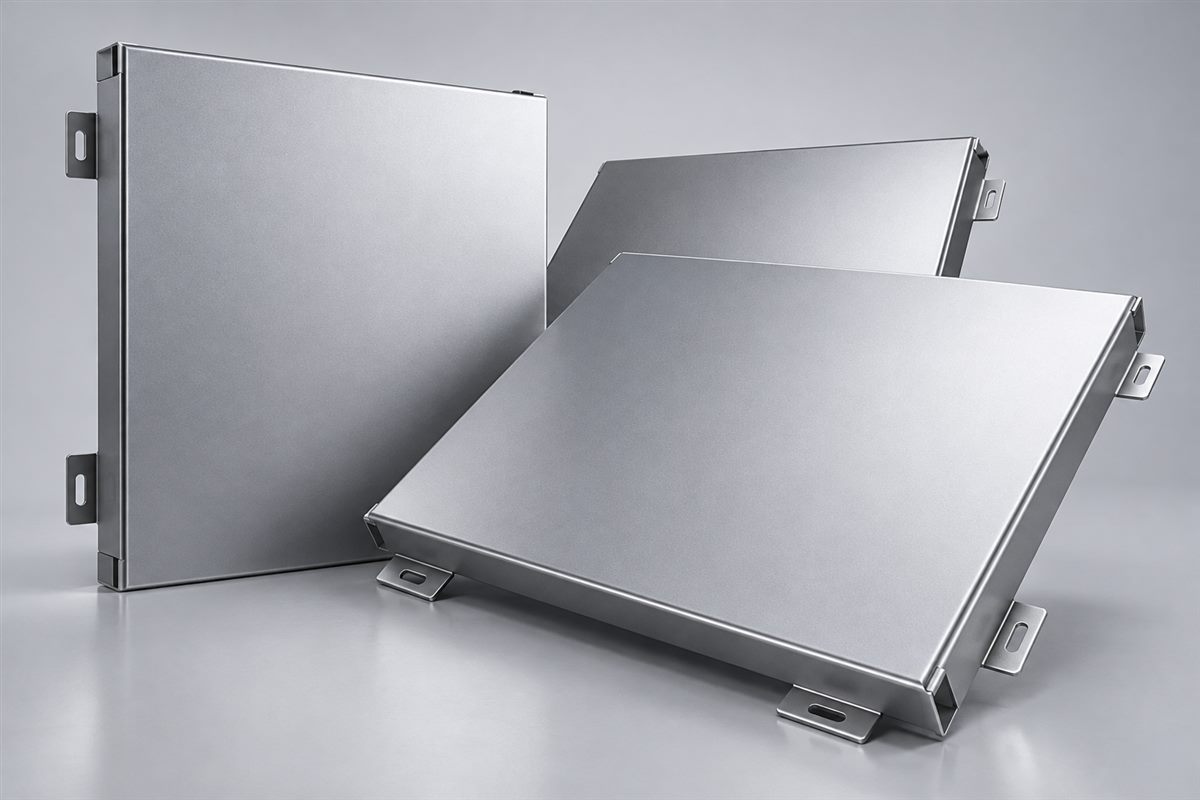

Solid Aluminum Panels
Custom aluminum cladding for facades, soffits and architectural interiors. From flat cassettes to complex formed surfaces, made around your project drawings.
1.5–3.0 mmTypical thickness
AA3003Common alloy
PVDF / PowderFinish options
Typical selection references; final specifications to approved drawing.
✓ OEM / ODM customization✓ Factory in Foshan, China
01 / PRODUCT OVERVIEW
A clean surface.
A precise finish.
A solid aluminum sheet is cut, folded and finished to create a lightweight architectural cassette. Panel dimensions, edge returns, reinforcement and mounting details are coordinated with the facade layout before production.
01
Drawing-led fabrication
Folded returns, fixing holes and stiffener positions coordinated before production.
02
One coordinated finish
Solid colors, metallics, woodgrain and stone effects selected against approved samples.
03
Project-ready identification
Panel marks and packing lists can follow the installation sequence.
02 / TECHNICAL DATA
Specifications, clearly defined.
| Parameter | Specification / options |
|---|---|
| Construction | Single-skin solid aluminum sheet; folded cassette or flat panel |
| Common alloy / temper | AA3003-H24; AA1100-H24 as a project alternative |
| Nominal thickness | 1.5 / 2.0 / 2.5 / 3.0 mm — reference selection |
| Reference flat-sheet sizes | 1,220 × 2,440 / 1,500 × 3,000 mm; finished cassette size subject to drawing review |
| Custom geometry | Flat, single-curved, double-curved and folded forms; feasibility reviewed per drawing |
| Edge returns | Typically 20–30 mm; mounting and joint details to drawing |
| Reinforcement | Stiffener layout selected for panel dimensions, support spacing and design wind load |
| Finishes | PVDF, powder coating, woodgrain or stone-effect treatment; approve a physical sample |
| PVDF film thickness | Typical target 25–35 μm for a two-coat system; system and test method to be agreed |
| Powder film thickness | Typical target 60–80 μm; coating supplier and exposure category to be agreed |
| Colors / sheen | RAL references, metallic colors and custom matching; approved sample controls acceptance |
| Fixing | Cassette brackets / fixing tabs coordinated with the support frame; fixings agreed per project |
| Dimensional tolerances | Panel flatness, bend angles and hole positions agreed on the approved shop drawings |
| Inspection | Material thickness, dimensions, surface appearance, film thickness and assembly checks |
| Fire / coating performance | Project-specific reports required for the selected complete assembly and coating system |
| Warranty | Written project-specific terms, coating system, exposure and maintenance conditions |
| Order / delivery | Made to order; quantity, sample cost, production lead time and shipping terms confirmed in quotation |
Typical specification references for initial selection. These values are not confirmed production limits. Final alloy, dimensions, tolerances, coating system and warranty are subject to drawing review, sample approval and written quotation.
03 / SURFACE & COLOR
A finish that fits your architecture.
Approve a physical sample for color, texture and sheen. Screen colors and product images are illustrative.
Graphite
Solid-color coating reference
Champagne
Metallic color reference
Woodgrain
Decorative finish reference
Finish compatibility depends on the alloy, fabrication route and exposure. Anodizing, PVDF and decorative treatments must be confirmed for the selected product.
04 / WHERE IT WORKS
Designed for real architectural needs.
01
Exterior facade cladding
02
Soffits & entrance canopies
03
Commercial interiors
04
Feature walls & columns
05 / FROM DRAWING TO DELIVERY
A clear path to your finished product.
Sample approval and written specifications keep material, finish and fabrication aligned.
- 01
Send drawings
CAD / PDF files, quantity, location and finish brief.
- 02
Review & quote
Confirm material, dimensions, details and commercial terms.
- 03
Approve a sample
Review finish, color, critical sizes and shop drawings.
- 04
Produce & inspect
Fabricate, finish and check against the approved order.
- 05
Pack & deliver
Protect, identify and pack for the agreed export shipment.
EXPORT PACKING
Protective surface layers, edge protection and suitable outer packing are agreed for the product and route. Part identification, packing lists and handling requirements are confirmed before shipment.
Which thickness should I choose?
Thickness depends on panel span, folded geometry, supports and design loads. The 1.5–3.0 mm values are a selection reference; the project designer must approve the final specification.
Can you make curved or irregular panels?
Yes, we accept drawings for single-curved, double-curved and custom shapes. Tooling, forming limits, reinforcement and finish are reviewed before a sample or production approval.
Can I request a sample and a custom quotation?
Yes. Send your drawing, estimated quantity, finish reference and delivery destination. Sample cost, minimum order, tooling, lead time and any warranty are confirmed in the written quotation.
